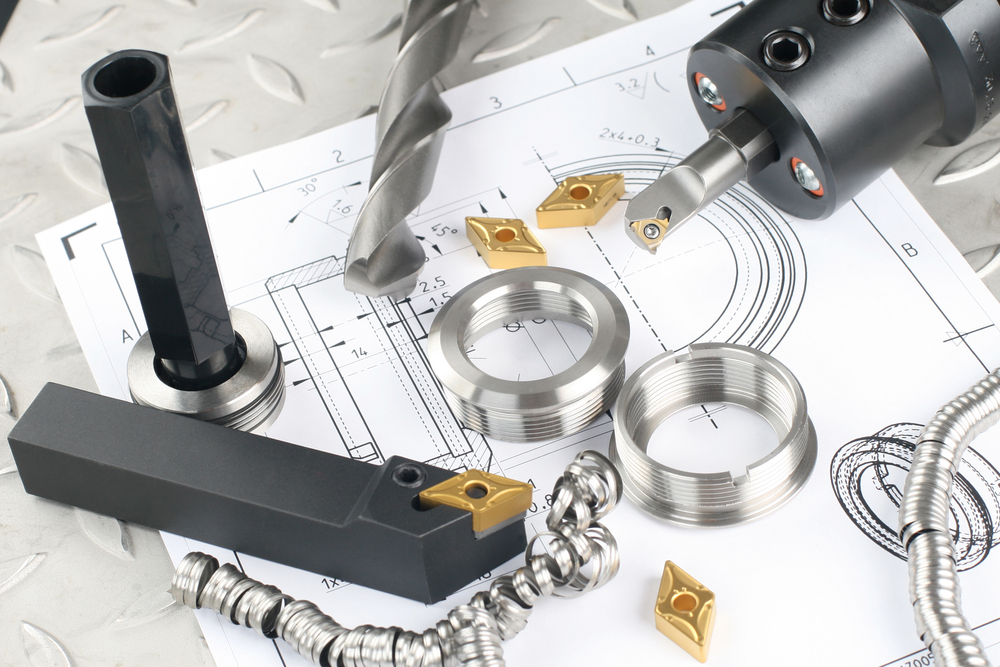

Lathe,Tool,,Drill,And,Workpiece,Laid,On,The,Blueprint

How to Read Fabrication Blueprints Like a Pro

May 4, 2025 3:38 pm Published by Leave your thoughts

Reading fabrication blueprints is a crucial skill for anyone working in the metal fabrication industry. Whether you’re a welder, machinist, or fabricator, understanding fabrication drawings is essential for the accurate execution of any project. These blueprints are the language of design, and the ability to interpret them with precision can make the difference between success and failure in fabrication. In this guide, we will break down the essential steps involved in reading fabrication blueprints like a pro.

The Basics of Fabrication Blueprints

Fabrication blueprints are detailed drawings that provide a visual representation of a metal part or assembly. These drawings communicate specific instructions about the materials, dimensions, and assembly methods necessary to create the part. A fabrication blueprint typically includes several key elements: the title block, views of the part, dimensions, tolerances, material specifications, welding instructions, and notes. Each of these elements plays a critical role in helping fabricators accurately interpret the blueprint and ensure the part is built to specification.

The title block contains vital information about the drawing, such as the project name, part number, scale, and revision history. Understanding how to interpret the title block is the first step in reading fabrication drawings. The scale listed will help you understand the size of the part in relation to the drawing, and the revision history will let you know if the drawing has been updated or modified.

Key Components of a Fabrication Blueprint

When reviewing fabrication blueprints, there are several key components to focus on. These elements will provide you with the information necessary to create the part according to the design specifications.

First, pay close attention to the views provided in the blueprint. Most fabrication drawings will include multiple views of the part, such as front, top, side, and isometric views. These views provide a comprehensive understanding of the part’s shape and structure. For example, the front view may show the overall shape, while the top and side views can reveal additional details like hole placements, bends, and other critical features.

Another essential aspect of the blueprint is the dimensions. Every part on the drawing will be dimensioned, meaning specific measurements will be indicated to define its size. This includes not only the overall length, width, and height, but also the placement of holes, cuts, and other features that make up the part. When interpreting dimensions, it is important to understand both the units of measurement (such as inches or millimeters) and the type of dimensioning used (e.g., linear or angular).

Tolerances are also crucial when reading fabrication blueprints. Tolerances define the allowable limits of variation for each dimension. For example, a tolerance may state that a hole should be 1-inch in diameter, with a tolerance of ±0.005 inches. This means the hole can vary by 0.005 inches in either direction, but it should not exceed these limits. Properly understanding and applying tolerances ensures that the fabricated part will fit and function as intended.

Understanding Welding Symbols and Notes

One of the most important aspects of blueprint reading for metal fabrication is understanding the welding symbols and notes that are often included. Welding symbols provide instructions for how and where welding should be performed on the part. These symbols are standardized, making it easier for welders to interpret the drawing and understand the welding process required.

Welding symbols consist of several parts, including the arrow, reference line, and symbol itself. The arrow points to the location on the part where the weld is required, and the reference line provides additional information about the type of weld needed. The symbol itself indicates the specific type of weld, such as a butt weld, fillet weld, or edge weld, among others. The symbol will often be accompanied by additional instructions that specify the size, length, and type of the weld, as well as any other relevant information such as the welding process to be used.

In addition to welding symbols, blueprints often include notes that provide additional instructions or clarifications. These notes may specify special instructions for handling materials, treatments, or other processes required for the fabrication of the part. It’s important to read and understand these notes thoroughly, as they can provide critical information that may not be immediately obvious from the main drawing itself.

Interpreting Material Specifications and Surface Treatments

Fabrication drawings will often specify the type of material that should be used for the part. Material specifications are essential because the properties of the material will affect how the part is cut, welded, or otherwise processed. Common materials used in metal fabrication include steel, aluminum, stainless steel, and various alloys. Each material has specific characteristics, such as strength, hardness, and corrosion resistance, which must be considered when creating the part.

Blueprints will typically list the material type along with its grade and any applicable standards. For example, a blueprint may specify “Mild Steel, ASTM A36,” which means the part should be made from mild steel that meets the ASTM A36 standard for structural steel. Understanding material specifications is critical for choosing the correct materials and ensuring that the part will perform as intended in its application.

Surface treatments are another important aspect of fabrication drawings. Surface treatments are processes that are applied to the material to improve its properties, such as enhancing corrosion resistance, improving hardness, or providing a decorative finish. Common surface treatments include galvanizing, powder coating, anodizing, and plating. Fabrication blueprints will often specify the required surface treatment, and it’s essential to follow these instructions precisely to ensure the part’s longevity and performance.

Practical Tips for Mastering Blueprint Reading

Now that we’ve covered the fundamental components of fabrication blueprints, let’s discuss some practical tips for mastering blueprint reading for metal fabrication. The more you practice, the more intuitive it will become, but here are a few strategies to help you improve your blueprint reading skills.

First, always start by reviewing the title block. This is the most straightforward way to gather key information about the drawing, such as the scale, part number, and revision history. Make sure you’re working with the most up-to-date version of the drawing, as earlier revisions may contain outdated or incorrect information.

Next, carefully examine the views of the part. Begin with the most basic views, such as the front or top view, and then work your way through any additional views or details provided. It’s essential to visualize how the part will look in three dimensions, so try to mentally rotate the part to see it from different angles.

When interpreting dimensions, pay special attention to the units and tolerances. Make sure you’re using the correct units of measurement, and always check that the tolerances are within acceptable limits. In some cases, you’ll need to apply specific measurement tools or techniques to ensure accuracy during fabrication, so understanding how to measure correctly is key.

Finally, practice interpreting welding symbols and notes. Start by familiarizing yourself with the most common welding symbols and their meanings. Once you’re comfortable with the symbols, try reading fabrication drawings with welding instructions to gain a deeper understanding of how the welding process should be executed.

Conclusion

Becoming proficient at reading fabrication blueprints requires knowledge, practice, and attention to detail. By understanding the key components of the blueprint, interpreting the welding symbols and material specifications, and applying best practices, you can confidently read and interpret fabrication drawings like a pro. This skill will not only improve the quality and accuracy of your work but also enhance your ability to communicate effectively with others in the metal fabrication industry. With these foundational skills, you’ll be well on your way to mastering blueprint reading and becoming a more effective fabricator.
